Bespoke Stainless Steel Mesh Filters
Allied Filter Systems Ltd manufactures bespoke filters from stainless steel woven wire mesh or perforated plate. Example products include:

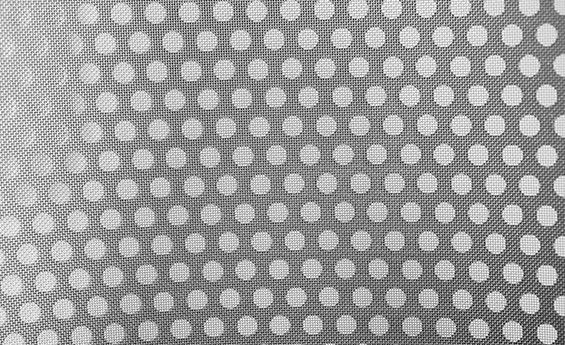

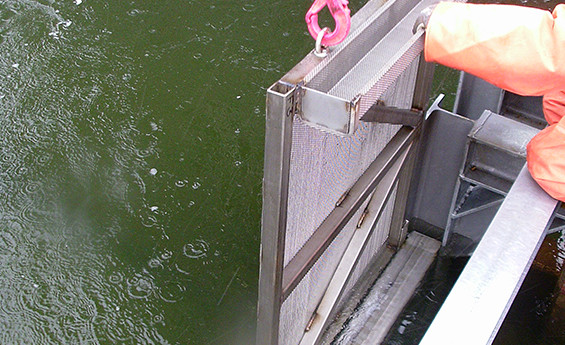

- Stainless steel mesh panels manufactured to the required size. Mesh panels can be produced with edging strips and with backing plates. Heavy duty, large size panels can be constructed for example with box section frame.
- Filter baskets.
- Discs cut to size.
All items are precision manufactured to be dimensionally accurate and can be produced in small volumes as well as in larger batches. Finished articles range in size from just a few centimetres to several metres.
Additional Information
We offer a wide range of plain weave or twilled weave stainless steel woven wire meshes. The meshes we have selected are robust, mechanically stable and precise. They are also characterised by their high flow rates and low differential pressures.
The standard range for woven wire meshes is 40 – 1000 microns with other ratings available on request. Multi layered or sintered meshes are also available on request. Stainless steel perforated sheet is available from 1mm aperture to more than 10mm with conventional circular hole, with square perforated products available on request.
